translate()

Translates the coordinate system.

By default, the origin (0, 0) is at the sketch's top-left corner in 2D. The translate() function shifts the origin to a different position. Everything drawn after translate() is called will appear to be shifted.

The first way to call translate() uses numbers to set the amount of translation. The two parameters, x and y, set the amount to translate along the positive x- and y-axes. For example, calling translate(20, 30) translates the origin 20 pixels along the x-axis and 30 pixels along the y-axis.

By default, transformations accumulate. For example, calling translate(10, 0) twice has the same effect as calling translate(20, 0) once. The push() and pop() functions can be used to isolate transformations within distinct drawing groups.

Note: Transformations are reset at the beginning of the draw loop. Calling translate(10, 0) inside the draw() function won't cause shapes to move continuously.

Examples

translate example 1

function setup()
  size(100, 100)
  windowTitle('translate() example')
  describe('A white circle on a gray background.')
end

function draw()
  background(200)

  -- Translate the origin to the center.
  translate(50, 50)

  -- Draw a circle at coordinates (0, 0).
  circle(0, 0, 40)
end

translate example 2

function setup()
  size(100, 100)
  windowTitle("translate() example")
  describe(
    'Two circles drawn on a gray background. The blue circle on the right overlaps the red circle at the center.'
  )
end

function draw()
  background(200)

  -- Translate the origin to the center.
  translate(50, 50)

  -- Draw the red circle.
  fill('red')
  circle(0, 0, 40)

  -- Translate the origin to the right.
  translate(25, 0)

  -- Draw the blue circle.
  fill('blue')
  circle(0, 0, 40)
end

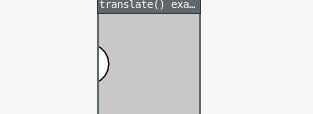

translate example 3

function setup()
  size(100, 100)
  windowTitle("translate() example")
  describe('A white circle moves slowly from left to right on a gray background.')
end

function draw()
  background(200)

  -- Calculate the x-coordinate.
  local x = frameCount * 0.2

  -- Translate the origin.
  translate(x, 50)

  -- Draw a circle at coordinates (0, 0).
  circle(0, 0, 40)
end

Syntax

translate(x, y)

Parameters

Parameter
x Number: amount to translate along the positive x-axis.
y Number: amount to translate along the positive y-axis.
