Shape Primitives

This program demonstrates the use of the basic shape primitive functions square(), rect(), ellipse(), circle(), arc(), line(), triangle(), quad().

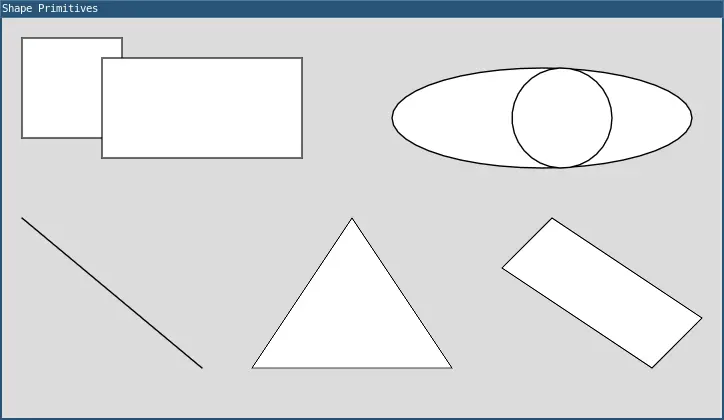

Shape primitives example

require("L5")

function setup()
  size(720, 400)
  windowTitle('Shape Primitives')

  -- Create text description output
  describe('A gray window with white shape primitives: rectangle overlapping square; ellipse, circle and arc creating appearance of an eye; individual line, triangle, and quad.')

  -- Use degrees as units for angles
  -- The arc() function uses angles
  angleMode(DEGREES)

  -- Draw a light gray background
  background(220)

  -- Draw square
  -- x, y, size
  square(20, 20, 100)

  -- Draw rectangle on top of square
  -- This appears in front of the square because the function is called
  -- after (further down)
  -- Switching the order of square and rect will make the square appear on
  -- top of the rectangle
  -- x, y, width, height
  rect(100, 40, 200, 100)

  -- Draw eye shape with ellipse, circle, and arc

  -- Draw ellipse as outer eye shape
  -- x, y, width, height
  ellipse(540, 100, 300, 100)

  -- Draw circle as pupil
  -- x, y, diameter
  circle(560, 100, 100)

  -- Draw arc (compare to ellipse()) as eyelid
  -- x, y, width, height, start angle, stop angle, mode
  arc(540, 100, 300, 100, 180, 360, CHORD)

  -- Draw line
  -- x1, y1, x2, y2
  line(20, 200, 200, 350)

  -- Draw triangle
  -- x1, y1, x2, y2, x3, y3
  triangle(250, 350, 350, 200, 450, 350)

  -- Draw quadrilateral
  -- x1, y1, x2, y2, x3, y3, x4, y4
  quad(500, 250, 550, 200, 700, 300, 650, 350)

end
  • Color - Add color to your sketch.

Shape primitives: Revised in 2023 by Darren Kessner. Created by Caleb Foss, Darren Kessner. From 2024 onwards, edited and maintained by p5.js Contributors and Processing Foundation. Adapted to L5 2025.. Licensed under CC BY-NC-SA 4.0.
