Walking Lines

The Walking Lines program visualizes randomly drawn lines bouncing around within a defined box, focusing on the intersection points that emerge from their interactions.

Walking Lines was contributed by Orllewin.

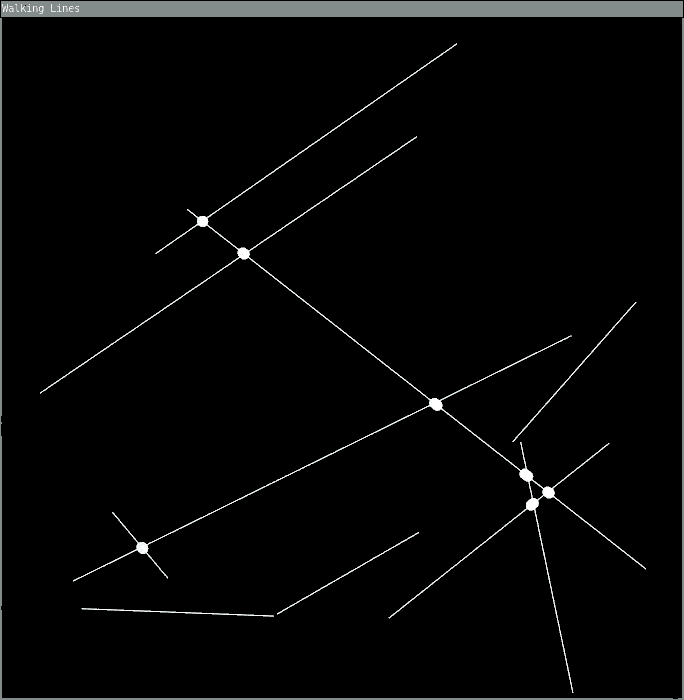

Intersecting lines bounce around the screen, their points of intersection highlighted with larger circles

require("L5")

local lines = {}
local lineCount = 10
local velocity = 3

function setup()
  windowTitle('Walking Lines')
  size(680, 680)

  frameRate(30)

  for i = 1 , lineCount do
    local walkingLine = {}
    walkingLine.x1 = random(width)
    walkingLine.y1 = random(height)
    walkingLine.x2 = random(width)
    walkingLine.y2 = random(height)

    walkingLine.x1Direction = 1
    if(random() > 0.5) then
      walkingLine.x1Direction = -1
    end
    walkingLine.y1Direction = 1
    if(random() > 0.5) then
      walkingLine.y1Direction = -1
    end
    walkingLine.x2Direction = 1
    if(random() > 0.5) then
      walkingLine.x2Direction = -1
    end
    walkingLine.y2Direction = 1
    if(random() > 0.5) then
      walkingLine.y2Direction = -1
    end
    table.insert(lines, walkingLine)
  end

  stroke(255)

  describe('Intersecting lines bounce around the screen, their points of intersection highlighted with larger circles')
end

function draw()
  background(0)

  for i = 1, lineCount do

    local walkingLine = lines[i]

    -- update
    walkingLine.x1 = walkingLine.x1 + (velocity * walkingLine.x1Direction)
    walkingLine.y1 = walkingLine.y1 + (velocity * walkingLine.y1Direction)
    walkingLine.x2 = walkingLine.x2 + (velocity * walkingLine.x2Direction)
    walkingLine.y2 = walkingLine.y2 + (velocity * walkingLine.y2Direction)

    -- check bounds
    if(walkingLine.x1 > width or walkingLine.x1 < 0)then
      walkingLine.x1Direction = walkingLine.x1Direction * -1
    end

    if(walkingLine.y1 > height or walkingLine.y1 < 0)then
      walkingLine.y1Direction = walkingLine.y1Direction * -1
    end

    if(walkingLine.x2 > width or walkingLine.x2 < 0)then
      walkingLine.x2Direction = walkingLine.x2Direction * -1
    end

    if(walkingLine.y2 > height or walkingLine.y2 < 0)then
      walkingLine.y2Direction = walkingLine.y2Direction * -1
    end

    -- draw intersections
    for j = 1, lineCount do
      if(j ~= i)then
        local otherWalkingLine = lines[j]
        local intersectX, intersectY = intersectPointLines(walkingLine, otherWalkingLine)
        if(intersectX ~= -1)then
          circle(intersectX, intersectY, 10)
        end
      end

    end

    --draw
    line(walkingLine.x1, walkingLine.y1, walkingLine.x2, walkingLine.y2)
  end
end

function intersectPointLines(a, b)
  return intersectPoint(a.x1, a.y1, a.x2, a.y2, b.x1, b.y1, b.x2, b.y2)
end

function intersectPoint(aX1, aY1, aX2, aY2, bX1, bY1, bX2, bY2)
  local a1 = aY2 - aY1
  local b1 = aX1 - aX2
  local c1 = a1 * aX1 + b1 * aY1

  local a2 = bY2 - bY1
  local b2 = bX1 - bX2
  local c2 = a2 * bX1 + b2 * bY1

  local delta = a1 * b2 - a2 * b1

  local iX = (b2 * c1 - b1 * c2) / delta
  local iY = (a1 * c2 - a2 * c1) / delta

  if(min(aX1, aX2) < iX and max(aX1, aX2) > iX and min(bX1, bX2) < iX and max(bX1, bX2) > iX) then
    return iX, iY
  else
    return -1, -1
  end
end
