createGraphics()
Creates an offscreen canvas that can be rendered to the window later.
createGraphics() creates an offscreen drawing canvas (graphics buffer) and returns it as a graphics object. Drawing to a separate graphics buffer can be helpful for performance and for organizing code.
The first two parameters, width and height, are optional. They set the dimensions of the offscreen canvas object. For example, calling createGraphics(900, 500) creates an offscreen canvas that's 900×500 pixels. By default the offscreen canvas is the same size as the window.
Note that L5's createGraphics() implementation is similar to Processing rather than p5.js. All drawing to the offscreen buffer should happen between the :beginDraw() and :endDraw() methods and can be display in the window with :getCanvas().

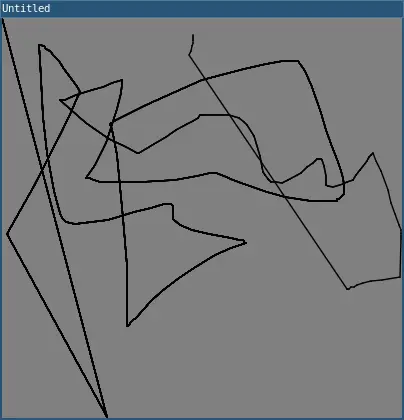

Examples
function setup()
size(400,400)
-- Create offscreen buffer same size as window
offscreenCanvas = createGraphics()
end
function draw()
-- start drawing offscreen
-- nothing is displayed until clicking
offscreenCanvas:beginDraw()
-- drawn to offScreenCanvas
line(pmouseX,pmouseY,mouseX,mouseY)
offscreenCanvas:endDraw()
end
function mousePressed()
-- display offscreenCanvas on screen
image(offscreenCanvas:getCanvas(), 0,0,width,height)
end
Syntax
createGraphics([width], [height])
Parameters
| Parameter | |
|---|---|
| width | Number: optional width of the graphics buffer. |
| height | Number: optional height of the graphics buffer. |
