beginShape()

Begins adding vertices to a custom shape.

The beginShape() and endShape() functions allow for creating custom shapes in 2D. beginShape() begins adding vertices to a custom shape and endShape() stops adding them.

The value of the kind parameter tells it which types of shapes to create from the provided vertices. With no mode specified, the shape can be any irregular polygon. The parameters available for beginShape() are POINTS, LINES, TRIANGLES, TRIANGLE_FAN, TRIANGLE_STRIP.

After calling the beginShape(), a series of vertex() commands must follow. To stop drawing the shape, call endShape().

A texture can also be wrapped around a shape with an applied texture(). The texture() function declares the texture to apply to the geometry and the u and v`` coordinates set define the mapping of this texture to the form. By default, the coordinates used for u and v are specified in relation to the image's size in pixels, but this relation can be changed withtextureMode()`.

Examples

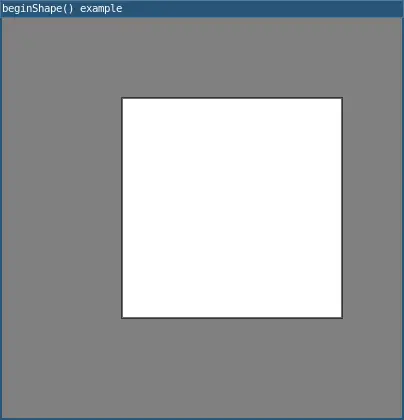

beginShape example 1


require("L5")

function setup()
  size(400, 400)
  windowTitle("beginShape example 1")

  beginShape()
  vertex(120, 80)
  vertex(340, 80)
  vertex(340, 300)
  vertex(120, 300)
  endShape(CLOSE)

  describe("A custom shape with beginShape, vertices and endShape, closed")
end

beginShape example 2

require("L5")

function setup()
  size(400,400)
  windowTitle("beginShape with POINTS example")

  beginShape(POINTS)
  vertex(120, 80)
  vertex(340, 80)
  vertex(340, 300)
  vertex(120, 300)
  endShape()

  describe("A custom shape made up of 4 points")
end

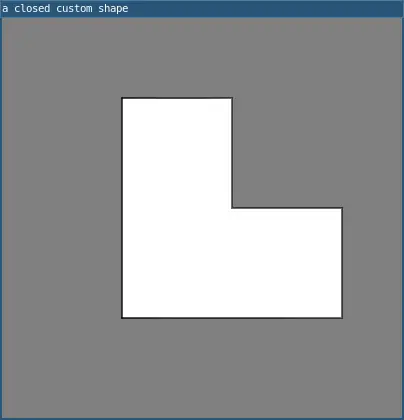

beginShape example 3

require("L5")

function setup()
  size(400,400)
  windowTitle("a closed custom shape")

  beginShape()
  vertex(120, 80)
  vertex(230, 80)
  vertex(230, 190)
  vertex(340, 190)
  vertex(340, 300)
  vertex(120, 300)
  endShape(CLOSE)

  describe("A custom shape made up of 4 points")
end

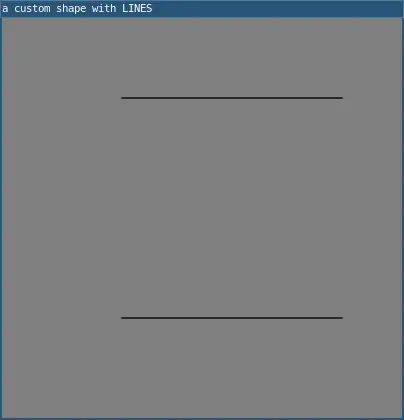

beginShape example 4

require("L5")

function setup()
  size(400,400)
  windowTitle("a custom shape with LINES")

  beginShape(LINES)
  vertex(120, 80)
  vertex(340, 80)
  vertex(340, 300)
  vertex(120, 300)
  endShape()

  describe("A custom shape built of 2 lines")
end

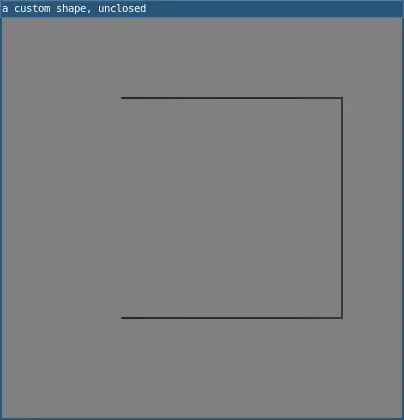

beginShape example 5

require("L5")

function setup()
  size(400,400)
  windowTitle("a custom shape, unclosed")

  noFill()
  beginShape()
  vertex(120, 80)
  vertex(340, 80)
  vertex(340, 300)
  vertex(120, 300)
  endShape()

  describe("A custom shape, unclosed")
end

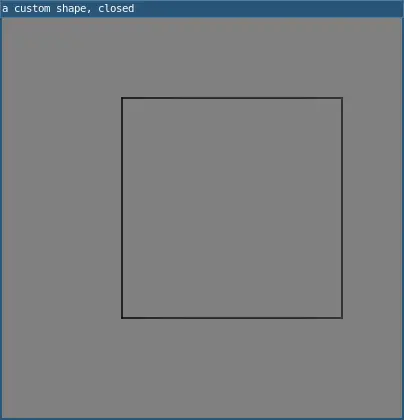

beginShape example 6

require("L5")

function setup()
  size(400,400)
  windowTitle("a custom shape, closed")

  noFill()
  beginShape()
  vertex(120, 80)
  vertex(340, 80)
  vertex(340, 300)
  vertex(120, 300)
  endShape(CLOSE)

  describe("A custom shape, closed")
end

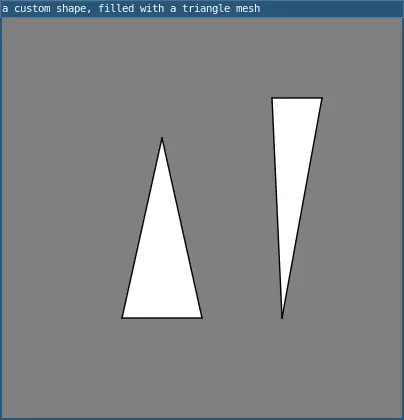

beginShape example 7

require("L5")

function setup()
  size(400,400)
  windowTitle("a custom shape, filled with a triangle mesh")

  beginShape(TRIANGLES)
  vertex(120, 300)
  vertex(160, 120)
  vertex(200, 300)
  vertex(270, 80)
  vertex(280, 300)
  vertex(320, 80)
  endShape()

  describe("A custom shape, filled with a triangle mesh")
end

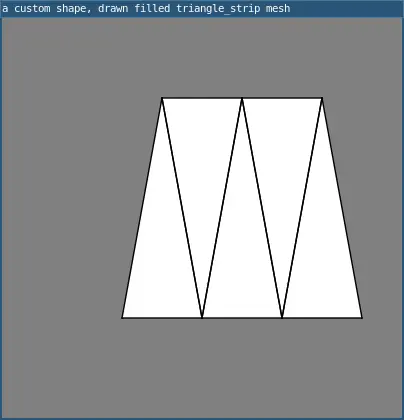

beginShape example 8

require("L5")

function setup()
  size(400,400)
  windowTitle("a custom shape, drawn filled triangle_strip mesh")

  beginShape(TRIANGLE_STRIP)
  vertex(120, 300)
  vertex(160, 80)
  vertex(200, 300)
  vertex(240, 80)
  vertex(280, 300)
  vertex(320, 80)
  vertex(360, 300)
  endShape()

  describe("A custom shape, drawn filled with triangle_strip mesh")
end

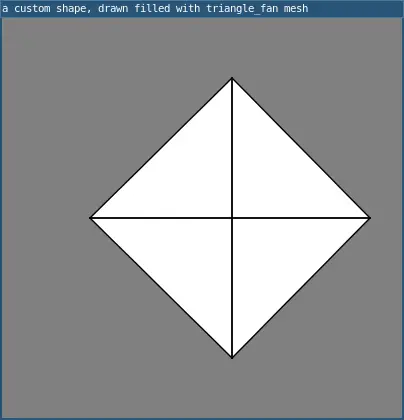

beginShape example 9

require("L5")

function setup()
  size(400,400)
  windowTitle("a custom shape, drawn filled with triangle_fan mesh")

  beginShape(TRIANGLE_FAN)
  vertex(230, 200)
  vertex(230, 60)
  vertex(368, 200)
  vertex(230, 340)
  vertex(88, 200)
  vertex(230, 60)
  endShape()

  describe("A custom shape, drawn filled with triangle_fan mesh")
end

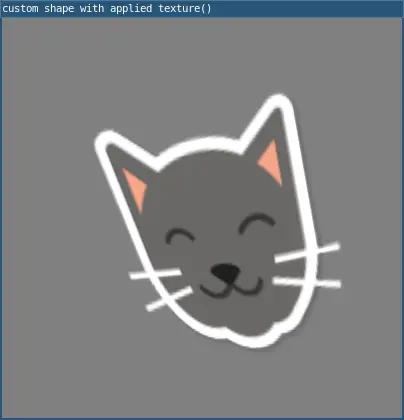

beginShape example 10

require("L5")

function setup()
  size(400, 400)
  windowTitle("custom shape with applied texture()")
  textureMode(NORMAL)

  img = loadImage("assets/cat.png")

  noStroke()
  beginShape()
  texture(img)
  -- "cat.png" is 128x128 pixels in size
  -- normal mode values 0 and 1 are used for the
  -- parameters "u" and "v" to map it directly
  -- to the vertex points
  vertex(40, 80, 0, 0)
  vertex(320, 20, 1, 0)
  vertex(380, 360, 1, 1)
  vertex(160, 380, 0, 1)
  endShape()

  describe("Wrapping a mesh texture around a custom shape with coordinates specified with u,v in normal mode 0 to 1")
end

Syntax

beginShape()
beginShape(kind)

Parameters

Parameter
kind string: either POINTS, LINES, TRIANGLES, TRIANGLE_FAN, TRIANGLE_STRIP.

This reference page contains content adapted from p5.js and Processing by p5.js Contributors and Processing Foundation, licensed under CC BY-NC-SA 4.0.
