Mouse 1D

Move the mouse left and right to shift the balance. The "mouseX" variable is used to control both the size and color of the rectangles.

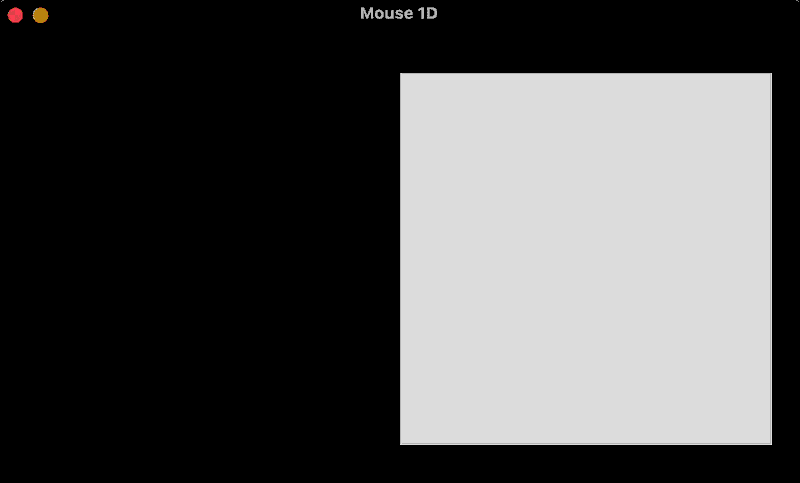

animation of two balanced gray rectangles shifting in size

require("L5")

function setup()
    size(640, 360)
    windowTitle("Mouse 1D")
    describe("Move the mouse left and right to shift the balance.")

    noStroke()
    colorMode(RGB, height, height, height)
    rectMode(CENTER)
end

function draw()
    background(0.0)

    local r1 = map(mouseX, 0, width, 0, height)
    local r2 = height - r1

    fill(r1)
    rect(width / 2 + r1 / 2, height / 2, r1, r1)

    fill(r2)
    rect(width / 2 - r2 / 2, height / 2, r2, r2)
end

Adapted from Processing examples. Adapted to L5 2025. Licensed under CC BY-NC-SA 4.0.
